Simmons cone crusher series copper accessories

The copper sleeve of the Simmons cone crusher includes:Bowl type bearing, frame bushing, main shaft bushing, thrust plate, transmission bearing.Bowl shaped tile:Also known as bowl type bearing sleeve, bowl type bearing bush, copper tile, copper basin, bowl type copper, etc. It i···

Boss:Han

cell phone:+86 17719955658

Telephone:+86 17719955658

Mail:dora@hsjxchina.com


support hotline:+86 17719955658 立即咨询

Details

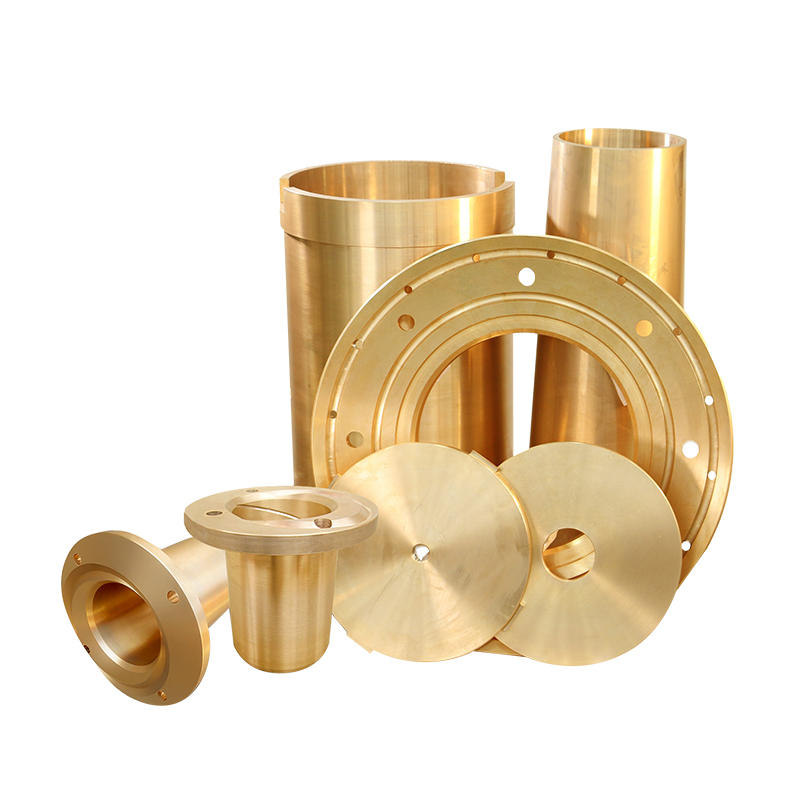

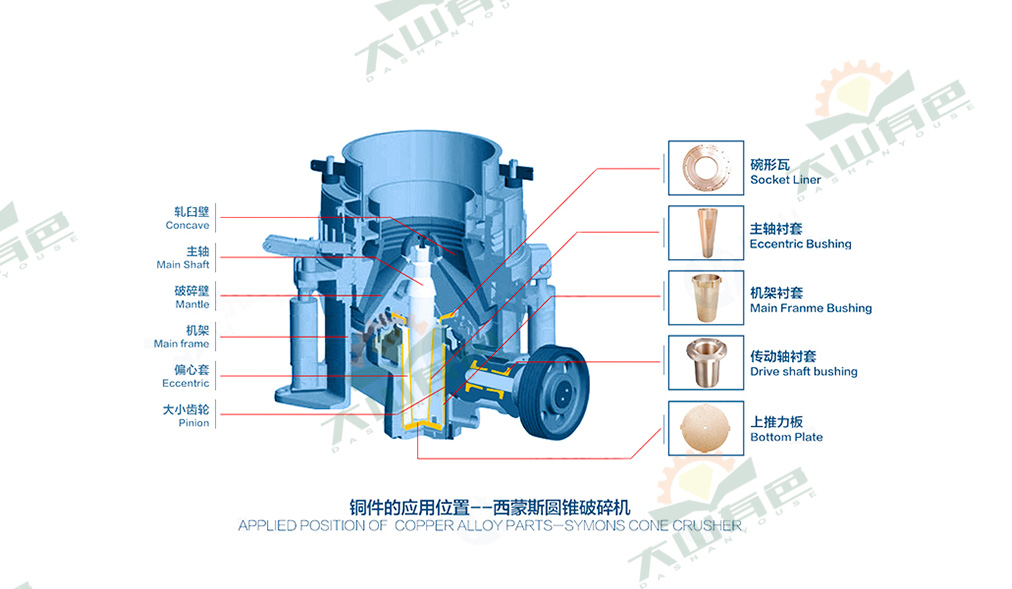

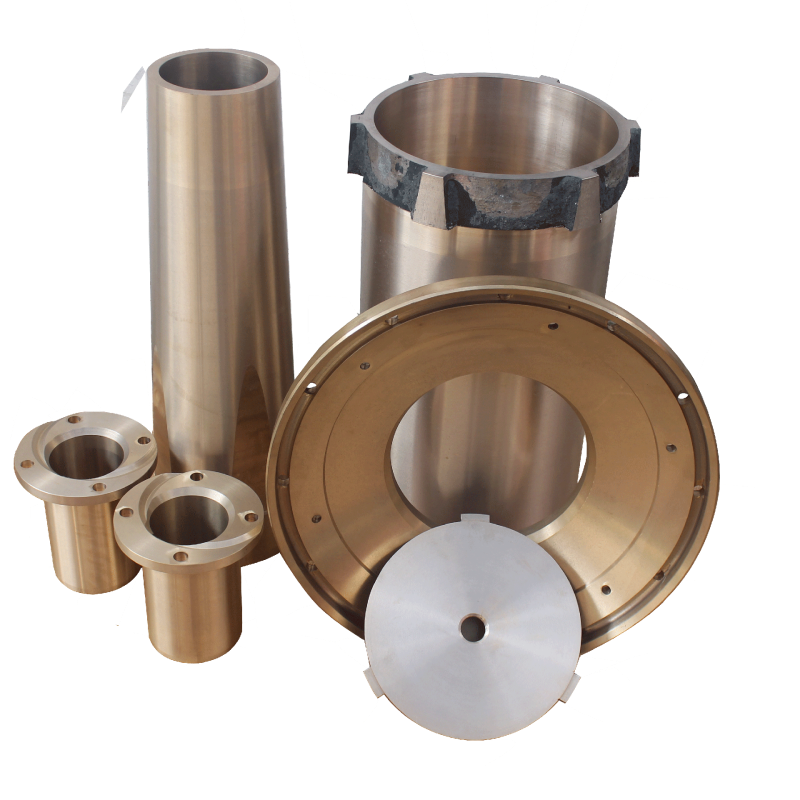

The copper sleeve of the Simmons cone crusher includes:

Bowl type bearing, frame bushing, main shaft bushing, thrust plate, transmission bearing.


Bowl shaped tile:

Also known as bowl type bearing sleeve, bowl type bearing bush, copper tile, copper basin, bowl type copper, etc. It is installed between the bowl shaped tile frame and the body. The contact surface between the body and the bowl shaped tile is spherical. The body is also provided with two spherical rings on the outside of the spherical surface, and a sealing ring is also provided between the body and the bowl shaped frame.

Spindle bushing:

Also known as bushing, shaft sleeve, inner sleeve, inner sleeve tapered bushing, tapered copper sleeve, inner copper, etc. Due to its tapered appearance, it is also known as a tapered sleeve. The tapered copper sleeve is suitable for the spindle part of spring type and Simmons type cone crushers. It is installed outside the shaft to protect the shaft

bushing:

Also known as straight copper sleeve, outer copper sleeve, outer copper, outer sleeve, bushing, frame copper sleeve, etc. Installed inside the main frame to protect the frame

Thrust plate:

Also known as disk, thrust plate, and lower thrust plate, the thrust bearing plate supports the empty eccentric shaft, reducing the running resistance of the empty eccentric shaft. At the same time, the accuracy of its installation directly affects the meshing clearance of the bevel gear, ensuring a reasonable fit clearance between the empty eccentric shaft sleeve and the main shaft, and avoiding the occurrence of "runaway" phenomenon.

Transmission shaft sleeve:

Also known as pulley copper sleeve, horizontal sleeve is installed at both ends of the transmission shaft of the crusher to drive the shaft to rotate.
