Single cylinder hydraulic cone crusher series copper

The copper bushing of the single cylinder hydraulic coning machine includes:Upper and lower bronze plates, frame bushing, eccentric copper sleeve, thrust bearing, copper slip ring.Upper bronze plate:The main shaft is equipped with a bronze plate, located above the middle steel p···

Boss:Han

cell phone:+86 17719955658

Telephone:+86 17719955658

Mail:dora@hsjxchina.com


support hotline:+86 17719955658 立即咨询

Details

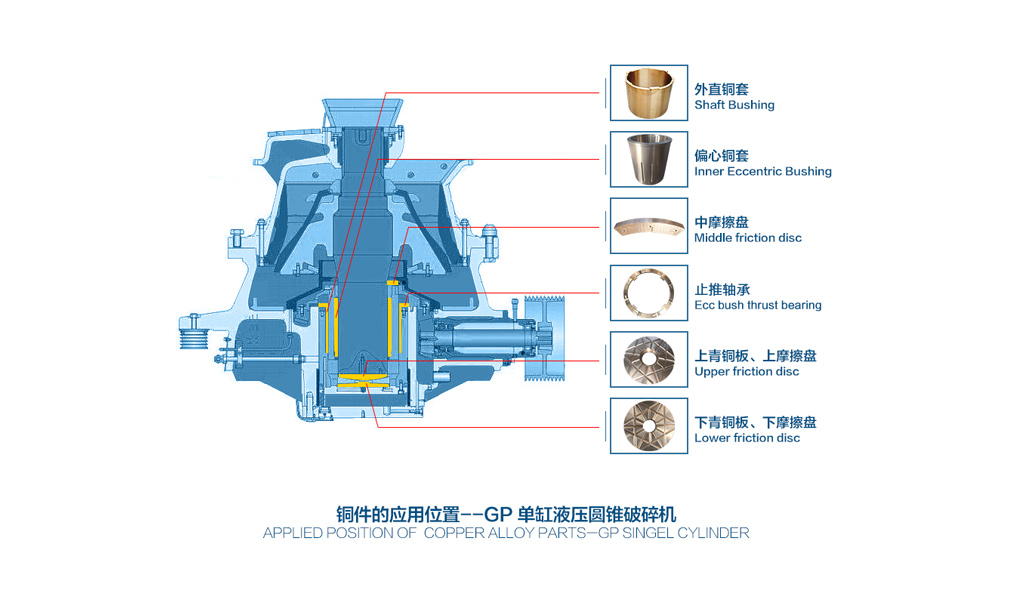

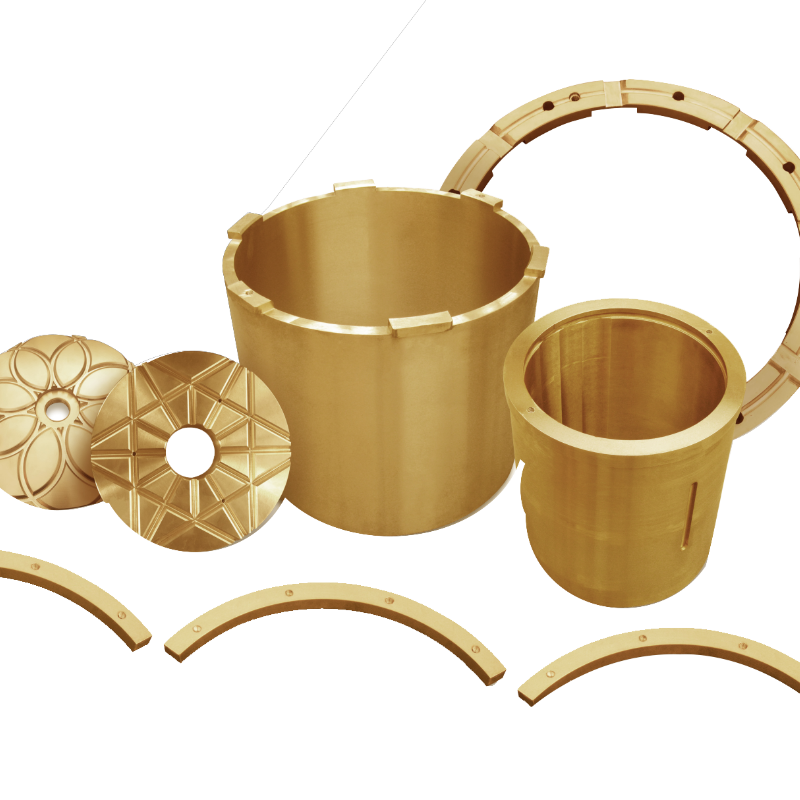

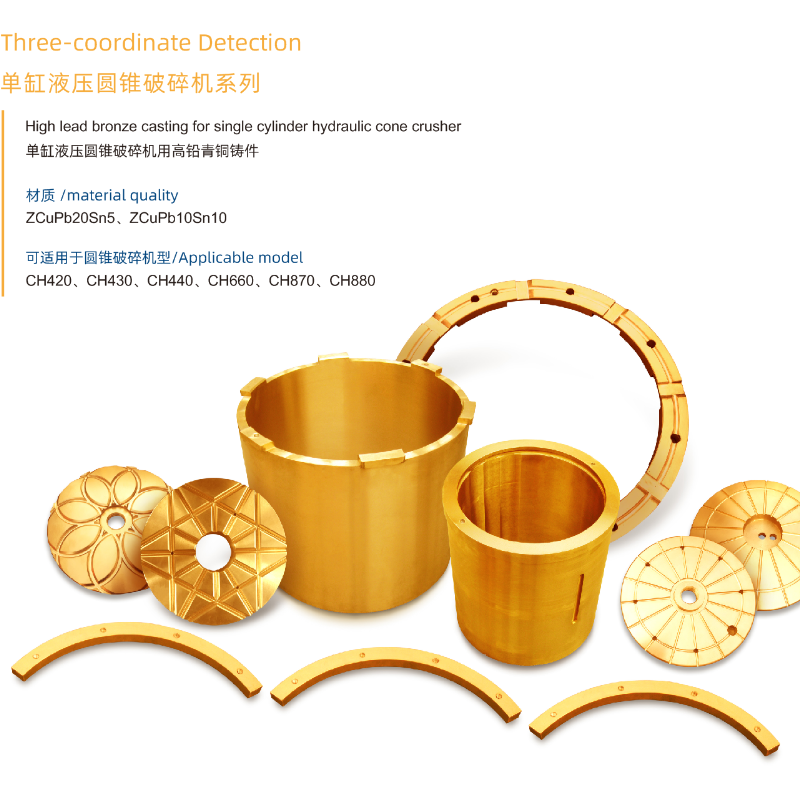

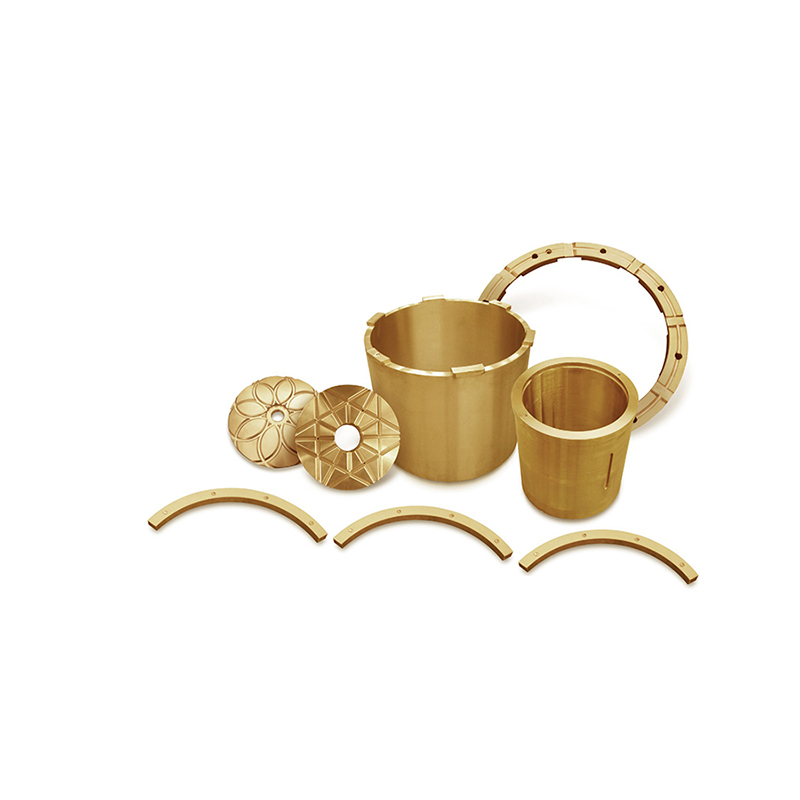

The copper bushing of the single cylinder hydraulic coning machine includes:

Upper and lower bronze plates, frame bushing, eccentric copper sleeve, thrust bearing, copper slip ring.


Upper bronze plate:

The main shaft is equipped with a bronze plate, located above the middle steel plate, which is a vulnerable part.

Lower bronze plate:

The piston is equipped with a lower bronze plate, located below the middle steel plate, which is a vulnerable part. The material is mostly made of aluminum bronze with high hardness and good mechanical properties, and is processed through a metal mold casting process.

Frame bushing:

Also known as outer copper sleeve, spindle bushing, and copper sleeve, the material is mostly high lead bronze,

eccentric bush:

Also known as eccentric sleeve, drive gear shaft copper sleeve, inner copper sleeve, etc. The material is high lead bronze,

Thrust bearing:

Also known as the thrust bearing middle plate, pressure ring, etc., its function is to reduce wear on parts, fix, and protect large mechanical components. The material is mostly made of aluminum bronze with high hardness and good mechanical properties, and is processed by centrifugal casting process.

Copper slip ring:

Also known as thrust disk, it is internally covered with copper slip rings, and is mostly made of aluminum bronze with high hardness and good mechanical properties, which is processed by centrifugal casting process.
