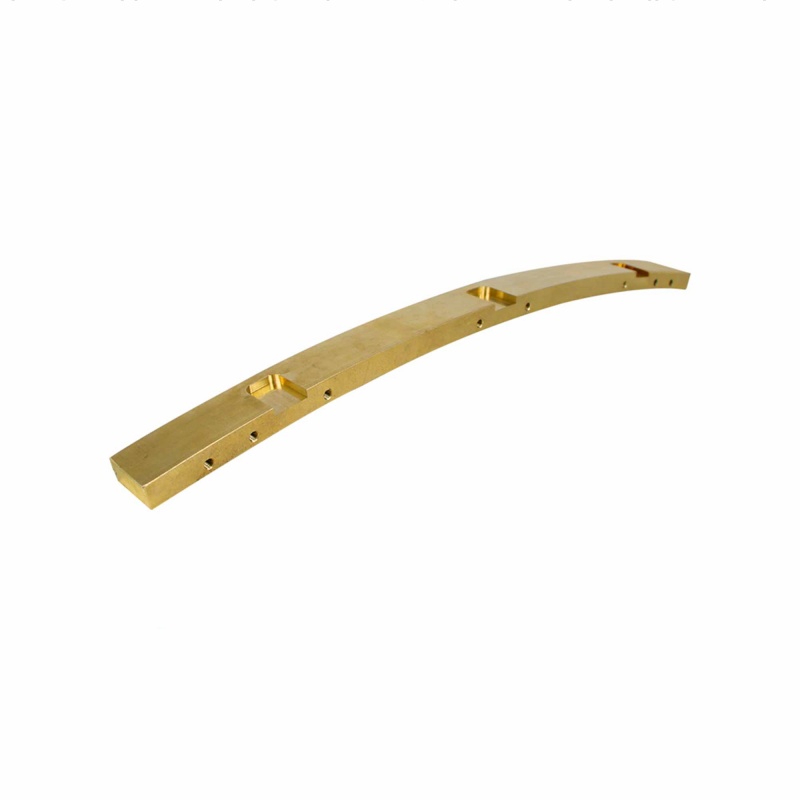

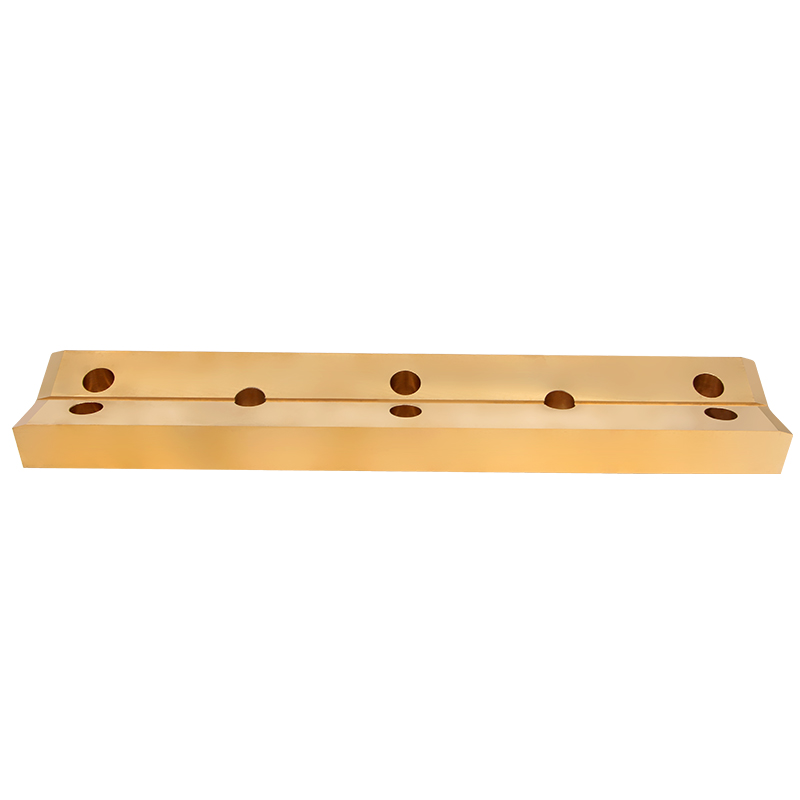

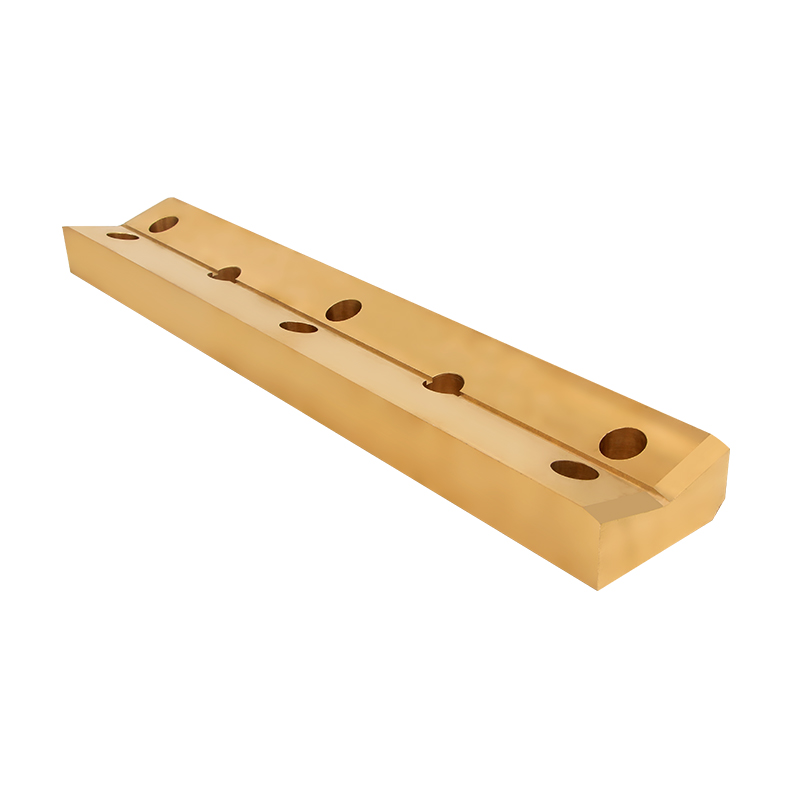

Bronze plate

The top of the sliding plate is penetrated with a through hole, the top of the sliding plate is penetrated with a connecting hole, and the through hole is spaced with the connecting hole. The inner wall of the through hole is embedded with a graphite strip, and the adhesive is fi···

Boss:Han

cell phone:+86 17719955658

Telephone:+86 17719955658

Mail:dora@hsjxchina.com


support hotline:+86 17719955658 立即咨询

Details

The top of the sliding plate is penetrated with a through hole, the top of the sliding plate is penetrated with a connecting hole, and the through hole is spaced with the connecting hole. The inner wall of the through hole is embedded with a graphite strip, and the adhesive is fixed between the graphite strip and the through hole. The outer circumference of the through hole is surrounded with an inner groove, and the inner groove is located on the surface of the sliding plate. The top and bottom surfaces of the sliding plate are fixed with a wear-resistant layer, In addition, connecting layers are fixed on both sides of the sliding plate. The copper base material sliding plate is provided with internal grooves, which can not only increase the contact area between the grinding machine and the graphite powder on the sliding plate, improve the lubrication effect, but also make the graphite powder generated by the friction between the graphite strip and the grinding machine enter the internal grooves, store the graphite powder, reduce the loss of graphite powder, reduce dust pollution, and improve the practicability of graphite powder, It is suitable for the production and use of copper base material slide plates and has a good development prospect


Bronze plate is mainly used in: automobile industry, motorcycle, various hydraulic machinery, metallurgical machinery, forging machinery, oilfield machinery, engineering machinery, mining machinery, power facilities, etc

Special features of bronze plate:

1. It is applicable to the position where lubricating oil must be frequently used, the position where reciprocating motion or frequent start or stop, and the place where it is difficult to form oil film.

2. It can be used in the self-lubricating state without oil filling device, which can shorten the assembly period, reduce the pollution of lubricating oil, protect the environment and beautify the social environment.

3. Excellent wear and bite resistance.
